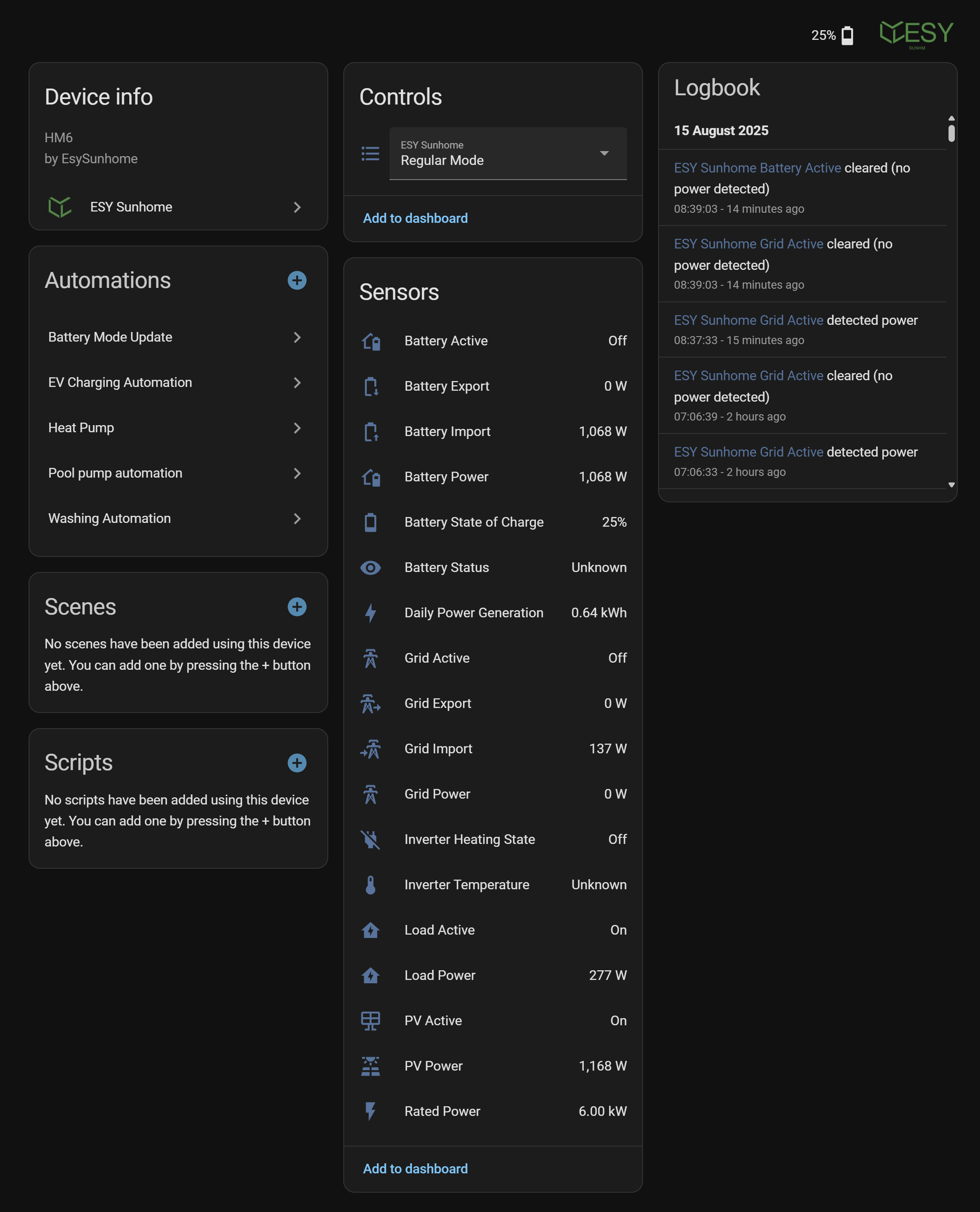

ESY Sunhome Battery Home Assistant Integration
Here i’ll be documenting my journey to optimize and automate my ESY sunhome battery. Prior to having the battery installed, i had a 10kW PV system so I had a bunch of existing automations to control devices.
Dashboard
I’ve included the yaml at the bottom of the page if you’d like to include a chart for your dashboard, firstly though i’ll go over the sensors and you should also configure the energy dashboard based on the sensors created.
Utility Meters
It’s worth noting that i have half hour net metering so so i have a bunch of half hour sensors.
hourly_cost:
source: input_number.lifetime_energy_charge
cycle: hourly
net_consumption: true
unique_id: hourly_cost
daily_cost:
source: input_number.lifetime_energy_charge
cycle: daily
net_consumption: true
unique_id: daily_cost
monthly_cost:
source: input_number.lifetime_energy_charge
cycle: monthly
net_consumption: true
unique_id: monthly_cost
production_half_hourly:
source: sensor.energy_from_solar
cron: "*/30 * * * *"
unique_id: production_half_hourly
production_today:
source: sensor.energy_from_solar
cycle: daily
unique_id: production_today
production_this_month:
source: sensor.energy_from_solar
cycle: monthly
unique_id: production_this_month
consumption_half_hourly:
source: sensor.energy_to_home
cron: "*/30 * * * *"
unique_id: consumption_half_hourly
export_half_hourly:
source: sensor.energy_to_grid
cron: "*/30 * * * *"
unique_id: export_half_hourly
import_half_hourly:
source: sensor.energy_from_grid
cron: "*/30 * * * *"
unique_id: import_half_hourly
energy_to_battery_half_hourly:
source: sensor.energy_to_battery
cron: "*/30 * * * *"
unique_id: energy_to_battery_half_hourly
energy_from_battery_half_hourly:
source: sensor.energy_from_battery
cron: "*/30 * * * *"
unique_id: energy_from_battery_half_hourly
consumption_today:
source: sensor.energy_to_home
cycle: daily
unique_id: consumption_today
consumption_this_month:
source: sensor.energy_to_home
cycle: monthly
unique_id: consumption_this_month
Sensors
- platform: integration
source: sensor.esy_sunhome_battery_import
name: Energy To Battery
unique_id: energy_to_battery
unit_prefix: k
round: 2
method: left
max_sub_interval:
minutes: 1
- platform: integration
name: Energy From Solar
unique_id: energy_from_solar
source: sensor.esy_sunhome_pv_power
unit_prefix: k
round: 2
method: left
max_sub_interval:
minutes: 1
- platform: integration
name: Energy From Battery
unique_id: energy_from_battery
source: sensor.esy_sunhome_battery_export
unit_prefix: k
round: 2
method: left
max_sub_interval:
minutes: 1
- platform: integration
name: Energy From Grid
unique_id: energy_from_grid
source: sensor.esy_sunhome_grid_import
unit_prefix: k
round: 2
method: left
max_sub_interval:
minutes: 1
- platform: integration
name: Energy To Grid
unique_id: energy_to_grid
source: sensor.esy_sunhome_grid_export
unit_prefix: k
round: 2
method: left
max_sub_interval:
minutes: 1
- platform: integration
name: Energy To Home
unique_id: energy_to_home
source: sensor.esy_sunhome_load_power
unit_prefix: k
round: 2
method: left
max_sub_interval:
minutes: 1
Template & Stats sensors
I created these using the UI, i haven’t tested the yaml so please test that they work or just create them using the UI.
# -------------------------
# TEMPLATE ENTITIES
# -------------------------
template:
- sensor:
# Current Rate is the rate descriptor
- name: "Current Rate"
unique_id: 01JSJ961WXK9QCB3RM7KFJ8CA4
icon: mdi:meter-electric-outline
state: >
{% if states('sensor.home_general_price_descriptor') not in ['unavailable', 'unknown', 'none'] %}
{{ states('sensor.home_general_price_descriptor').replace('_', ' ') | title }}
{% else %}
{{ this.state }}
{% endif %}
- name: "Current Charge"
unique_id: 01JSJ9HDRYPPTWZKJ39FJN1JJH
icon: mdi:meter-electric
unit_of_measurement: "$"
state: >
{% if states('sensor.home_general_price') not in ['unavailable', 'unknown', 'none'] %}
{{ states('sensor.home_general_price') }}
{% else %}
{{ this.state }}
{% endif %}
- name: "Current Export Rate"
# Current Export Rate is the Descriptor
unique_id: 01K2K91A63BK2XJP3PPV03K66W
state: >
{% if states('sensor.home_feed_in_price_descriptor') not in ['unavailable', 'unknown', 'none'] %}
{{ states('sensor.home_feed_in_price_descriptor').replace('_', ' ') | title }}
{% else %}
{{ this.state }}
{% endif %}
- number:
# Half Hourly Accumulating Charge
- name: "Half Hourly Accumulating Charge"
unique_id: 01JWVVB9QHP5QGNVTWP67VEB72
unit_of_measurement: "$"
min: 0
max: 100
step: 1
state: >
{% set consumption = states('sensor.half_hour_max_import') | float(0) %}
{% set production = states('sensor.half_hour_max_export') | float(0) %}
{% set energy = consumption - production | float(0) %}
{% set rate = states('sensor.current_charge') | float(0) %}
{% set export_rate = states('number.current_export_charge') | float(0) %}
{% if energy > 0 %}
{{ (states('input_number.lifetime_energy_charge') | float(0)) + (energy * rate) }}
{% else %}
{{ (states('input_number.lifetime_energy_charge') | float(0)) + (energy * export_rate) }}
{% endif %}
- number:
# Current Export Charge
- name: "Current Export Charge"
unique_id: 01K2K8FGHKB8H12RPE7NJB3CGT
unit_of_measurement: "$"
min: 0
max: 100
step: 1
state: >
{% if states('sensor.home_feed_in_price') not in ['unavailable', 'unknown', 'none'] %}
{{ states('sensor.home_feed_in_price') }}
{% else %}
{{ this.state }}
{% endif %}
# -------------------------
# STATISTICS SENSORS
# -------------------------
sensor:
# Half Hour Max Consumption (max over last 30 minutes)
- platform: statistics
name: "Half Hour Max Consumption"
unique_id: 01JWVSZQDGE6RWNK7YYJ7TN7DE
entity_id: sensor.consumption_half_hourly
state_characteristic: value_max
max_age:
minutes: 30
# Half Hour Max Production
- platform: statistics
name: "Half Hour Max Production"
unique_id: 01JWVT1R5H5JP7SNDQ928A5X2S
entity_id: sensor.production_half_hourly
state_characteristic: value_max
max_age:
minutes: 30
# Half Hour Max Export
- platform: statistics
name: "Half Hour Max Export"
unique_id: 01K2PKKVJY1TXTPWVAEAEKNGVA
entity_id: sensor.export_half_hourly
state_characteristic: value_max
max_age:
minutes: 30
# Half Hour Max Import
- platform: statistics
name: "Half Hour Max Import"
unique_id: 01K2PKP0GPBDG2C8M9FEDPSZN1
entity_id: sensor.import_half_hourly
state_characteristic: value_max
max_age:
minutes: 30
# -------------------------
# FILTERED (ROLLING) SENSORS
# -------------------------
sensor:
# Home Battery Export Rolling Average (time-based SMA example)
- platform: filter
name: "Home Battery Export Rolling Average"
unique_id: 01K2CKT99F88XACNM0HKB9DKMD
entity_id: sensor.esy_sunhome_battery_export
filters:
- filter: time_simple_moving_average
window_size: "00:30"
precision: 0
# Solar Production EMA (low-pass = exponential smoothing)
- platform: filter
name: "Solar Production EMA"
unique_id: 01K2D9V7ZMYNPT51N4TE9AA0M5
entity_id: sensor.esy_sunhome_pv_power
filters:
- filter: lowpass
time_constant: 10
precision: 0
Automations
These are some helper automations i tweak before i set the battery to import or export.
I set up the ESY “Battery Energy Management” mode to elecricity purchase from 00:00 to 23:59 so when i switch to this operating mode, i know it will charge the battery.. yours will be different if you haven’t configured the mode.. This isn’t yet available through the HACS integration but will be available soon.
Since i’ve only had my battery for under a month and some of the household is away on holiday, the consumption will soon increase but my plan is to forecast consumption and set a target battery capacity for each day to ensure there is enough power to sell and consume before the next day.
alias: Stop Electricty Selling
description: >-
When battery charge drops below 51% or the feed-in price drops below 20c and
the battery is in sell mode, then switch back to regular mode
triggers:
- trigger: numeric_state
entity_id:
- sensor.esy_sunhome_battery_state_of_charge
below: 51
- trigger: numeric_state
entity_id:
- sensor.home_feed_in_price
for:
hours: 0
minutes: 0
seconds: 10
below: 0.2
conditions:
- condition: state
entity_id: select.esy_sunhome_operating_mode
state: Electricity Sell Mode
actions:
- action: select.select_option
target:
entity_id: select.esy_sunhome_operating_mode
data:
option: Regular Mode
- action: notify.mobile_app_sm_s938b
metadata: {}
data:
message: Switched to regular mode
title: Battery mode update
mode: single
#############################################################################
alias: Stop Charging
description: >-
When battery charge drops is above 75% or the general price is above 9c and
the battery is in buy mode, then switch back to regular mode
triggers:
- trigger: numeric_state
entity_id:
- sensor.esy_sunhome_battery_state_of_charge
above: 75
- trigger: numeric_state
entity_id:
- sensor.home_general_price
for:
hours: 0
minutes: 0
seconds: 10
above: 0.09
conditions:
- condition: state
entity_id: select.esy_sunhome_operating_mode
state: Battery Energy Management
actions:
- action: select.select_option
target:
entity_id: select.esy_sunhome_operating_mode
data:
option: Regular Mode
- action: notify.mobile_app_sm_s938b
metadata: {}
data:
message: Stopped Charging
mode: single
#############################################################################
alias: Energy Cost Half Hourly
description: >-
Calculates the net charge for each half hour and adds it to lifetime energy
charge.
triggers:
- trigger: time_pattern
minutes: /30
conditions: []
actions:
- action: input_number.set_value
target:
entity_id: input_number.lifetime_energy_charge
metadata: {}
data:
value: "{{ states('number.half_hourly_accumulating_charge') | float(0) }}"
mode: single
#############################################################################
alias: Energy Daily Access Charges
description: >-
Adds the daily access charge and amber fee to the lifetime energy charge sensor"
triggers:
- trigger: time_pattern
hours: "0"
minutes: "0"
seconds: "1"
conditions: []
actions:
- action: input_number.set_value
target:
entity_id: input_number.lifetime_energy_charge
metadata: {}
data:
value: "{{ states('input_number.lifetime_energy_charge') | float(0) + 0.9790 }}"
- action: input_number.set_value
metadata: {}
data:
value: >
{% set dt = now() %}
{% set days_this_month = (dt.replace(month=dt.month % 12 + 1, day=1) -
timedelta(days=1)).day %}
{% set charge = (12.5/days_this_month) | float(0) %}
{{ states('input_number.lifetime_energy_charge') | float(0) + charge }}
target:
entity_id: input_number.lifetime_energy_charge
mode: single
Dashboard
In case you’re interested in the components that make up my dashboard.. here is the yaml:
The custom integrations / cards used:
- Mushroom
- apexcharts-card
- card-mod
- Power Flow Card Plus
- Solcast PV Forecast
- type: sections
title: Energy Bill
path: energy-bill
icon: mdi:lightning-bolt-circle
sections:
- type: grid
cards:
- type: heading
heading_style: title
heading: Forecast Energy Production
grid_options:
columns: 9
rows: 1
icon: mdi:solar-power
- type: clock
card_mod:
style: |
:host { }
ha-card {
background: none;
border: none;
padding: 10px 0 0 0;
text-align: right;
}
grid_options:
columns: 3
rows: 1
column_span: 2
- type: grid
cards:
- type: custom:mushroom-entity-card
entity: sensor.solcast_pv_forecast_forecast_this_hour
grid_options:
columns: 3
rows: 1
fill_container: true
layout: horizontal
name: This Hour
icon: none
icon_type: none
card_mod:
style: |
ha-card {
background: none;
border: none;
}
- type: custom:mushroom-entity-card
grid_options:
columns: 3
rows: 1
fill_container: false
layout: horizontal
name: Next Hour
icon: mdi:solar-power
icon_type: none
entity: sensor.solcast_pv_forecast_forecast_next_hour
card_mod:
style: |
ha-card {
background: none;
border: none;
}
- type: custom:mushroom-entity-card
fill_container: true
layout: horizontal
name: Remaining Today
icon: none
icon_type: none
grid_options:
columns: 3
rows: 1
entity: sensor.solcast_pv_forecast_forecast_remaining_today
card_mod:
style: |
ha-card {
background: none;
border: none;
}
- type: custom:mushroom-entity-card
grid_options:
columns: 3
rows: 1
fill_container: true
layout: horizontal
name: Today
icon: none
icon_type: none
entity: sensor.solcast_pv_forecast_forecast_today
card_mod:
style: |
ha-card {
background: none;
border: none;
}
- type: custom:mushroom-entity-card
entity: sensor.solcast_pv_forecast_forecast_tomorrow
grid_options:
columns: 6
rows: 1
fill_container: true
name: Tomorrow
icon: none
icon_type: none
card_mod:
style: |
ha-card {
background: none;
border: none;
}
column_span: 2
- type: grid
cards:
- type: custom:power-flow-card-plus
entities:
battery:
entity:
'0': b
'1': i
'2': 'n'
'3': a
'4': r
'5': 'y'
'6': _
'7': s
'8': e
'9': 'n'
'10': s
'11': o
'12': r
'13': .
'14': e
'15': s
'16': 'y'
'17': _
'18': s
'19': u
'20': 'n'
'21': h
'22': o
'23': m
'24': e
'25': _
'26': b
'27': a
'28': t
'29': t
'30': e
'31': r
'32': 'y'
'33': _
'34': a
'35': c
'36': t
'37': i
'38': v
'39': e
consumption: sensor.esy_sunhome_battery_export
production: sensor.esy_sunhome_battery_import
state_of_charge: sensor.esy_sunhome_battery_state_of_charge
grid:
entity:
'0': b
'1': i
'2': 'n'
'3': a
'4': r
'5': 'y'
'6': _
'7': s
'8': e
'9': 'n'
'10': s
'11': o
'12': r
'13': .
'14': e
'15': s
'16': 'y'
'17': _
'18': s
'19': u
'20': 'n'
'21': h
'22': o
'23': m
'24': e
'25': _
'26': g
'27': r
'28': i
'29': d
'30': _
'31': a
'32': c
'33': t
'34': i
'35': v
'36': e
consumption: sensor.esy_sunhome_grid_import
production: sensor.esy_sunhome_grid_export
secondary_info: {}
solar:
display_zero_state: true
secondary_info: {}
entity: sensor.esy_sunhome_pv_power
home:
secondary_info: {}
use_metadata: false
override_state: false
subtract_individual: true
entity: sensor.esy_sunhome_load_power
fossil_fuel_percentage:
secondary_info: {}
clickable_entities: false
display_zero_lines:
mode: hide
transparency: 50
grey_color:
- 189
- 189
- 189
use_new_flow_rate_model: true
w_decimals: 0
kw_decimals: 1
min_flow_rate: 0.75
max_flow_rate: 6
max_expected_power: 2000
min_expected_power: 0.01
watt_threshold: 1000
transparency_zero_lines: 0
sort_individual_devices: false
dashboard_link: ''
- type: energy-distribution
column_span: 2
- type: grid
cards:
- type: custom:apexcharts-card
experimental:
color_threshold: true
graph_span: 24h
span:
start: minute
header:
show: true
title: Amber Electricty Forecast
show_states: false
colorize_states: true
series:
- entity: sensor.home_general_forecast
float_precision: 2
color_threshold:
- value: 0
color: cyan
- value: 0.16
color: green
- value: 0.25
color: yellow
- value: 0.4
color: red
name: price kwh
data_generator: |
return entity.attributes.forecasts.map((entry) => {
return [new Date(entry.start_time), entry.per_kwh];
});
yaxis:
- min: 0
max: ~0.5
decimals: 2
apex_config:
forceNiceScale: true
apex_config:
stroke:
width: 2.5
grid:
show: true
borderColor: '#333'
strokeDashArray: 1
- type: custom:apexcharts-card
experimental:
color_threshold: true
graph_span: 24h
span:
start: minute
header:
show: true
title: Amber Feed-In Forecast
show_states: false
colorize_states: true
series:
- entity: sensor.home_feed_in_forecast
float_precision: 2
color_threshold:
- value: 0
color: red
- value: 0.16
color: yellow
- value: 0.25
color: cyan
- value: 0.5
color: green
name: price kwh
data_generator: |
return entity.attributes.forecasts.map((entry) => {
return [new Date(entry.start_time), entry.per_kwh];
});
yaxis:
- min: ~0
max: ~0.5
decimals: 2
apex_config:
forceNiceScale: true
apex_config:
stroke:
width: 2.5
grid:
show: true
borderColor: '#333'
strokeDashArray: 1
column_span: 2
- type: grid
cards:
- type: energy-sankey
grid_options:
columns: 24
rows: 4
column_span: 2
- type: grid
cards:
- type: custom:apexcharts-card
layout_options:
grid_columns: 24
experimental:
disable_config_validation: true
graph_span: 24h
span:
end: day
offset: +1h
yaxis:
- decimals: 2
apex_config:
forceNiceScale: true
labels:
formatter: |
EVAL:function(value) {
if (value.toString().length > 6)
return '0.00';
return Math.abs(value).toFixed(2);
}
apex_config:
annotations:
position: front
chart:
height: 400
stroke:
width: 2
grid:
show: false
xaxis:
lines:
show: false
axisBorder:
show: false
yaxis:
axisBorder:
show: false
legend:
show: false
all_series_config:
extend_to: now
float_precision: 2
stacked: true
series:
- entity: sensor.half_hour_max_import
type: column
name: Import from Grid
color: '#656567'
show:
datalabels: false
extremas: false
invert: true
group_by:
func: max
duration: 30m
transform: 'return x == 0.0 ? null : x;'
- entity: sensor.half_hour_max_consumption
type: column
name: Consumption
color: '#d67629'
show:
datalabels: false
extremas: false
invert: true
group_by:
func: last
duration: 30m
transform: 'return x == 0.0 ? null : x;'
- entity: sensor.half_hour_max_production
type: column
name: Production
color: '#6eb4dc'
show:
datalabels: false
extremas: false
invert: false
group_by:
func: last
duration: 30m
transform: 'return x == 0.0 ? null : x;'
- entity: sensor.half_hour_max_export
type: column
name: Export to Grid
color: '#656567'
show:
datalabels: false
extremas: false
invert: false
group_by:
func: last
duration: 30m
transform: 'return x == 0.0 ? null : x;'
card_mod:
style: |
:host {
width: 100%
}
ha-card {
width: 100%;
}
.wrapper.with-header {
width: 100%;
}
column_span: 2
header: {}
cards: []
badges:
- type: custom:mushroom-template-badge
content: '{{ ((25 * ((states(entity) | int)/100)) | float(0)) | round(1) }} kWh'
color: |-
{% set number = (states(entity) | int) %}
{% if (number >= 70) %}
green
{% elif (number >= 40) %}
yellow
{% elif (number >= 30) %}
orange
{% else %}
red
{% endif %}
label: Battery SoC - {{(states(entity) | int)}}%
tap_action:
action: navigate
navigation_path: /config/devices/device/91b5a8d4f272ea50b568420b3e866baf
entity: sensor.esy_sunhome_battery_state_of_charge
icon: |-
{% set number = (states(entity) | int) %}
{% if (number >= 90) %}
mdi:battery
{% elif (number >= 80) %}
mdi:battery-80
{% elif (number >= 70) %}
mdi:battery-70
{% elif (number >= 60) %}
mdi:battery-60
{% elif (number >= 50) %}
mdi:battery-50
{% elif (number >= 40) %}
mdi:battery-40
{% elif (number >= 30) %}
mdi:battery-30
{% elif (number >= 20) %}
mdi:battery-20
{% elif (number >= 10) %}
mdi:battery-10
{% elif (number >= 0) %}
mdi:battery-outline
{% else %}
mdi:battery
{% endif %}
- type: entity
show_name: true
show_state: true
show_icon: true
entity: sensor.esy_sunhome_pv_power
name: 'Production '
color: accent
- type: entity
show_name: true
show_state: true
show_icon: true
entity: sensor.esy_sunhome_load_power
name: Consumption
- type: custom:mushroom-template-badge
icon: mdi:currency-usd
label: Daily Cost
content: ${{ states.sensor.daily_cost.state | float | round(2) }}
entity: sensor.daily_cost
color: |-
{% set rate=states(entity) | float %}
{% if rate > 1 %}
red
{% elif rate < 0 %}
green
{% else %}
yellow
{% endif %}
double_tap_action:
action: url
url_path: app://com.amberelectric.customerportal
hold_action:
action: url
url_path: app://com.amberelectric.customerportal
tap_action:
action: more-info
- type: custom:mushroom-template-badge
icon: mdi:currency-usd
label: Monthly Cost
content: ${{ states.sensor.monthly_cost.state | float | round(2) }}
color: |-
{% set rate=states(entity) | float %}
{% if rate > 20 %}
red
{% elif rate < 0 %}
green
{% else %}
yellow
{% endif %}
entity: sensor.monthly_cost
double_tap_action:
action: url
url_path: app://com.amberelectric.customerportal
hold_action:
action: url
url_path: app://com.amberelectric.customerportal
- type: custom:mushroom-template-badge
content: >-
{{ (states.sensor.current_charge.state | float(0) * 100) | round(1)
}}c / kWh
entity: sensor.current_rate
color: |-
{% set rate=states(entity) %}
{# [ negative, extremelyLow, veryLow, low, neutral, high, spike ] #}
{% if rate == 'Negative' %}
green
{% elif rate == 'Extremely Low' %}
green
{% elif rate == 'Very Low' %}
green
{% elif rate == 'Low' %}
yellow
{% elif rate == 'Neutral' %}
red
{% elif rate == 'High' %}
red
{% elif rate == 'Spike' %}
red
{% else %}
white
{% endif %}
label: 'Import - {{states.sensor.current_rate.state }} '
double_tap_action:
action: url
url_path: app://com.amberelectric.customerportal
hold_action:
action: url
url_path: app://com.amberelectric.customerportal
icon: mdi:transmission-tower-import
- type: custom:mushroom-template-badge
content: >-
{{ (states.number.current_export_charge.state | float(0) * 100) |
round(1) }}c / kWh
color: |-
{% set rate=states(entity) %}
{# [ negative, extremelyLow, veryLow, low, neutral, high, spike ] #}
{% if rate == 'Negative' %}
red
{% elif rate == 'Extremely Low' %}
red
{% elif rate == 'Very Low' %}
green
{% elif rate == 'Low' %}
yellow
{% elif rate == 'Neutral' %}
yellow
{% elif rate == 'High' %}
green
{% elif rate == 'Spike' %}
green
{% else %}
white
{% endif %}
label: 'Export - {{states.sensor.current_export_rate.state}} '
double_tap_action:
action: url
url_path: app://com.amberelectric.customerportal
hold_action:
action: url
url_path: app://com.amberelectric.customerportal
entity: sensor.current_export_rate
icon: mdi:transmission-tower-export
max_columns: 2
dense_section_placement: false
Thank you
-
For those who are looking to purchase/install a sunhome battery, get $50 off using my code: AU1587 when you register and set up the ESY sunhome app.
-
If like me, you’re switching to Amber for wholesale rates (in Australia), you can use code QVLA4DT4 to get $120 off.
